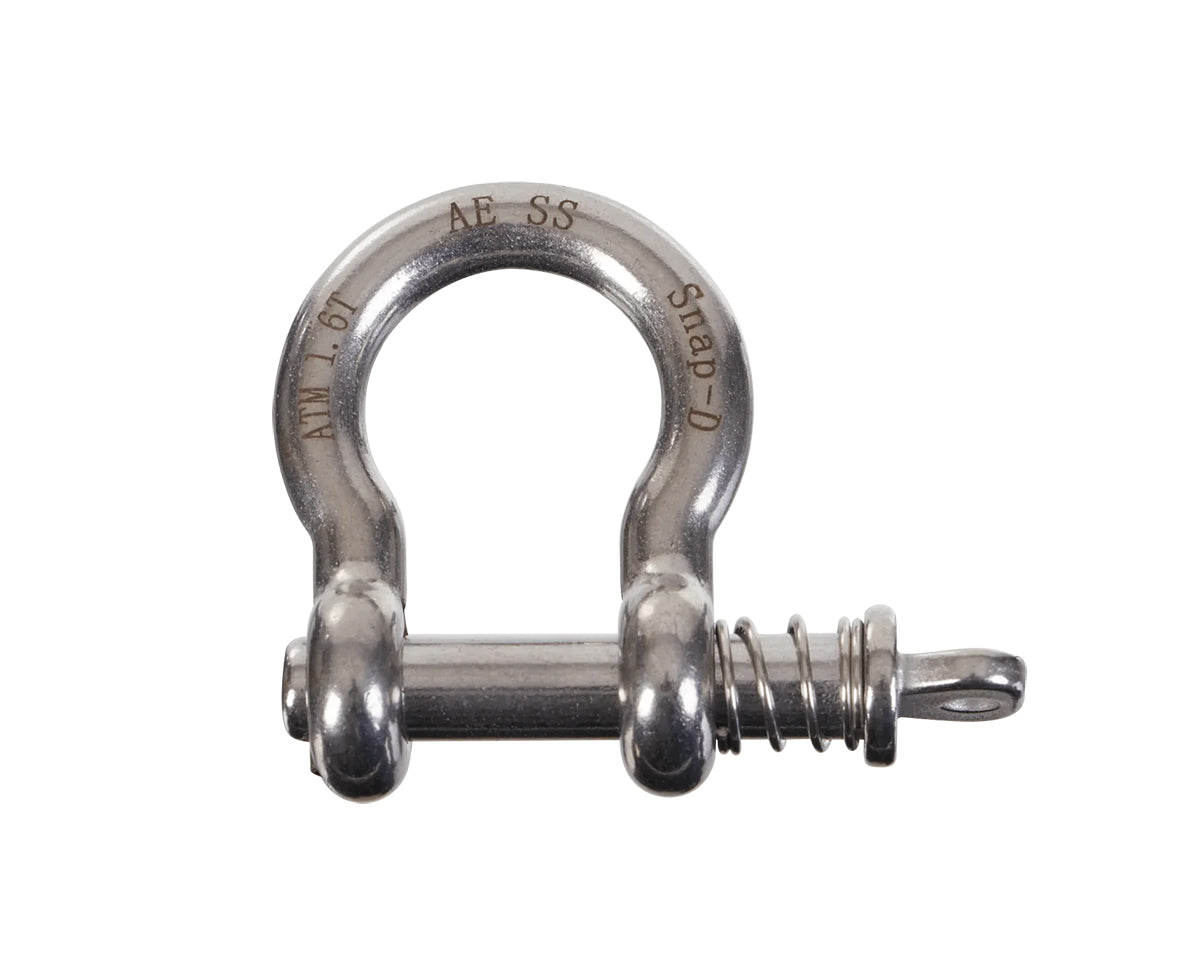

BOW SHACKLE HD WITH CAPTIVE PIN STAINLESS STEEL 13MM JPW4823
Delivery and Pickup
Delivery and Pickup
Shipping is from $15 per item. Unfortunately, most batteries and antennas cannot be posted, pick up option only.
Pick up 30 Hunter Street Broome WA 6725
Heavy Duty Bow Shackles, made from premium 304-grade stainless steel, with a spring loaded captive pin that stays securely in place and can never be fully removed or lost.
Each shackle has the clear load rating stamped on it and complies with Australian Towing Standards.
Add 2-3mm to the shackle size to allow for the roll pin to fit through the desired hole.
ay goodbye to the hassle of lost pins, rust, or seized shackles.
Features:
- 304-grade stainless steel bow shackle
- Stainless steel spring loaded Captive pin
- Stamped with Load Rating
- Corrosion-resistant and built to last
- Complies with Australian Towing Standards (Meets AS4177:2004/4B)
- Designed for towing and general use, not for lifting.
- Avoid side loading or shock loading
- See related products for Counter Display Stand to capture customer attention and boost sales.
Please note: the Maximum Recommended Load is a safe load recommendation. The Max Towing Mass is the maximum load that should ever be applied to that shackle.
| Shackle Size | Max Recommended load | Max Towing Mass |
|---|---|---|
| 8mm | 670 kg | 1000 kg |
| 10mm | 1070 kg | 1600 kg |
| 12mm | 1670 kg | 2500 kg |
| 17mm | 3000 kg | 4500 kg |
