Description

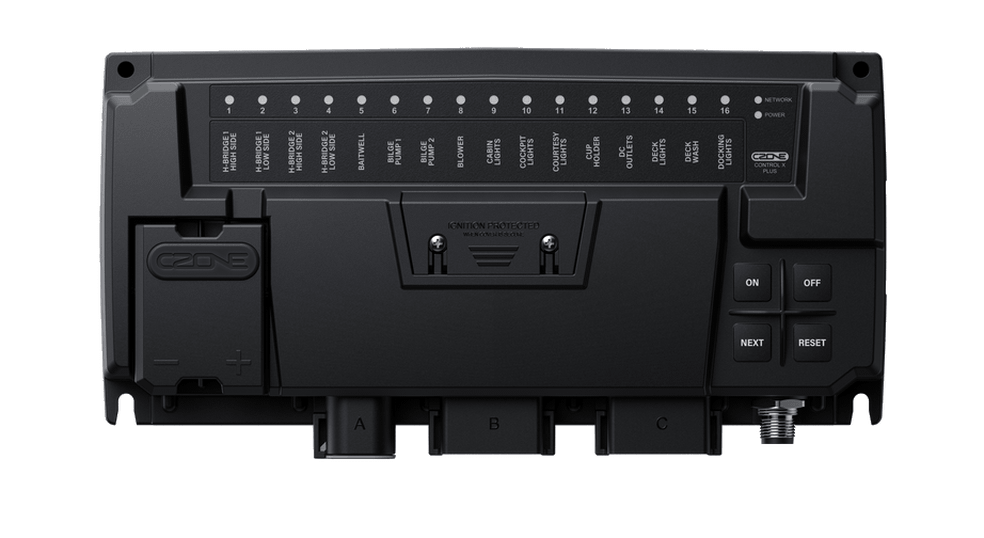

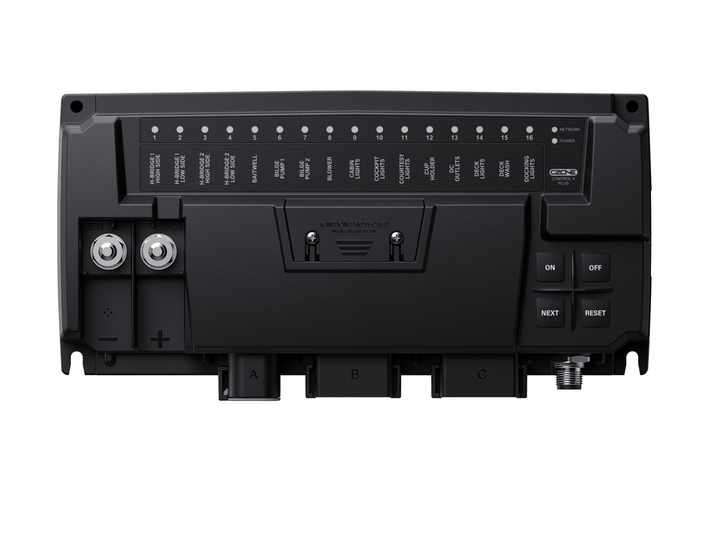

Control X is the smartest and sleekest CZone module, and the first with a fully waterproof enclosure. Configurable input and output channels provides ultimate flexibility to optimize system design and installation. Control X uses the latest smart MOSFET switching technology providing improved reliabiity, and silent operation. Features such as multiple RGB lighting control zones, reversing motor H-bridge outputs and wiper motor synchronization eliminates the need for 3rd party controllers giving installers complete flexibilty to configure the modules to specific requirements.
- Ignition Protected IPX7 fully waterproof enclosure
- RGBW light controller
- Wiper Motor control with synchronization
- Configurable I/o channels for ultimate flexibility
- Manual Override touch panel
- Multiplex switch inputs
- Moulded in Deutsch receptacles
RGB Lighting Control
CZone has incorporated an RGB light controller built into Control X for simplified and seamless lighting control. Independently control brightness of lights on the same color zone, smooth transition color effects and control lighting scenes from CZone circuits like party mode, and night-time navigation.
Automatic Bilge Pump Monitoring
Control X output channels have voltage backfeed detection used to monitor if a circuit has been turned on externally. This allows for features like notifying operators if automatic bilge pumps have been turned on and to use external voltage signals to trigger other CZone circuits.
Wiper Sync
Control X can synchronise up to 8 wiper motors on the same module and allows easly configuration of slow and high speed control as well as 3 unique intermittent timers.
Smart MOSFET Technology
CZone’s latest 100% solid state MOSFET switching technology, eliminates the need for physical fuses with temperature monitoring and configurable overcurrent protection in smaller, more reliable components. Software fuse ratings are entered in the configuration file.
ADDITIONAL FEATURES
- Configurable input and output channels
- 100% solid state Smart MOSFET switching technology provides improved reliability, silent operation & smaller footprint than traditional relays.
- Current monitoring with automatic software fusing protection removes the need to purchase and install physical fuses.
- 45% smaller footprint than COI/Control 1 with flexible configuration options.
- Built in RGB controllers means seamlessly integrated lighting controls, with the ability to have independently operated lighting zones.
- Dual speed wiper motor controller with wiper synchronization for up to 4 motors per module and 3 configurable intermittent timer settings.
- Automatic bilge pump running detection on all output channels
