Description

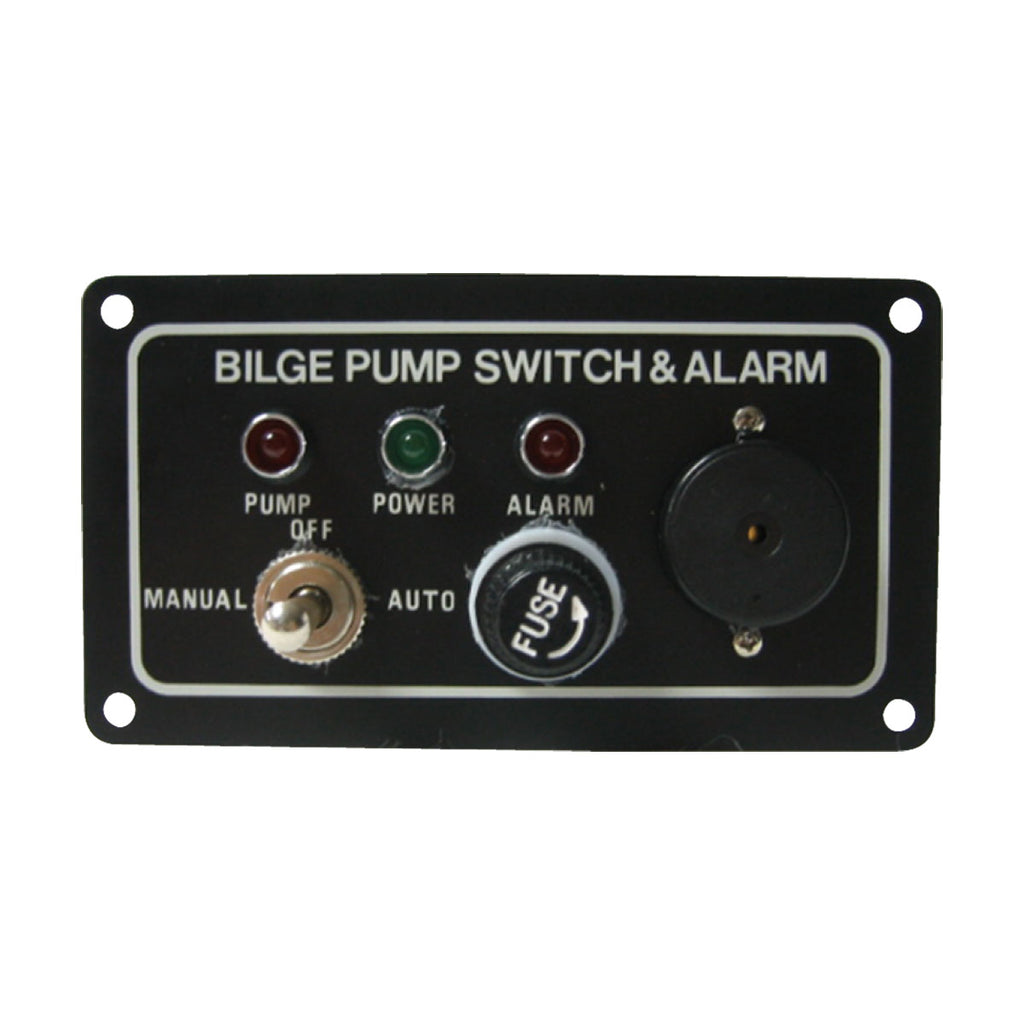

Bilge Pump Control Panel - With Alarm Black finished aluminium panel with three position switch, fuse and audible and visual alarm function. Used to control any submersible bilge pump up to 10amp current draw, fitted with a float switch. Switch has manual/off/auto positions with spring return to off from the manual position. Red indicator light and audible alarm activates if bilge pump fails when in auto mode. A green light shows when operating correctly. Suitable for 12 volt DC applications only. BLA Code Width mm Height mm Cut Out mm Intrusion mm Mount Screws mm 114032 115 64 85 x 40 40 3 r/h
