Medium frequency delivers the right combination of coverage under the boat, extended depth range, and the ability to produce clean and accurate target and structure returns in mid to deeper water. Operating at a frequency range of 85 to 135 kHz, this transducer reveals fish at medium depths of up to 457 m (1,500') and delivers ultra-clear target resolution.

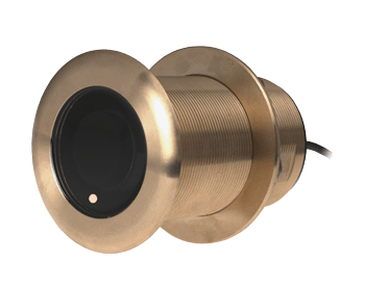

The B175M transmits across the Medium Chirp frequency 85 to 135 kHz
Tilted Element™ transducers have the element fixed at a 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.
- Fixed 0° tilted version for 0° to 7° hull deadrise
Features
- Depth and water-temperature sensor
- 1 kW with a maximum depth of 457 m (1,500')
- Medium frequency: 85 to 135 kHz
- 16° to 11° beamwidth
- 50 kHz of total bandwidth from one transducer
- Medium frequency provides excellent shallow to mid-depth performance, bottom detail, and fish-target separation
- Low-profile, thru-hull housing provides good resolution at speed when installed properly
- Bonze housing for use on stepped, planing or displacement hull
