Description

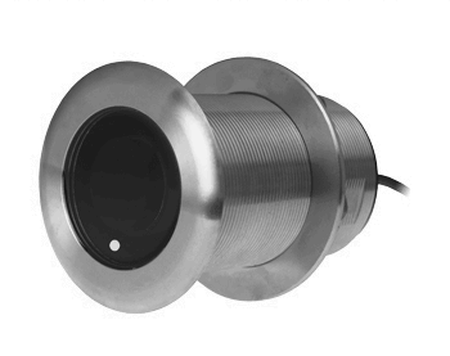

Airmar’s low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band delivers a narrow beamwidth, excellent for pinpointing fish holding tight to wrecks, reefs, and other structure. High frequency also delivers amazing target separation on baitfish and schooling gamefish. The SS75H transducer delivers up to 80 kHz of total bandwidth in just one installation for amazing bottom detail and fish-target resolution.
SS75H transmits across the High Chirp frequency 130 to 210 kHz.
Tilted Element™ transducers have the element fixed at a 20°, 12° or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.
The SS75H is available in three Tilted Element models:
- Fixed 20° tilted version for 16° to 24° hull deadrise
- Fixed 12° tilted version for 8° to 15° hull deadrise
- Fixed 0° tilted version for 0° to 7° hull deadrise
Features
- Depth and fast-response water-temperature sensor
- 600 W with a maximum depth performance to 214 m (700')
- High frequency: 130 to 210 kHz
- 15° to 9° beamwidth
- High frequency delivers great shallow-water performance, bottom detail, and clear fish-target returns
- Low-profile, thru-hull housing provides good resolution at speed when installed properly
- Stainless steel housing for use on stepped, planing or displacement hull
