TM260 1KW NON CHIRP 50/200 TRANSOM MOUNT XDCR 000-13904-001

Sale price$1,629.99

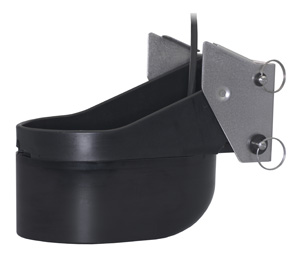

Airmar XSOIC TM260 Transom Mount Transducer. Powerful, Yet Sensitive!

The TM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line, broadband, transom-mount brings crystal clear imaging to any of today’s fishfinders.

The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom.

Included rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).


  • Depth and fast-response water-temperature sensor
  • 1 kW
  • Dual-frequency element:
  • 50 kHz with a 19° beamwidth for depth performance to 800 m (2,600')
  • 200 kHz with a 6° beamwidth for depth performance to 294 m (1,000')
  • Available with a diplexer for single-transmission-line fishfinders and without a diplexer for dual transmission-line fishfinders
  • Urethane transom transducer for installation on outboard and I/O powered boats
  • Stainless steel kick-up bracket locks in the “up” position and will not damage the transom


  • Weight: 4 kg (8.9 lb.)
  • Recommended Boat Length: 10 m (32') and up
  • Hull Deadrise: Up to 28°
  • Transom Angle: 3° to 21°
  • Acoustic Window: Urethane
  • Speed Performance: Up to 35 MPH
