TM260 1KW NON CHIRP 50/200 TRANSOM MOUNT XDCR 000-13904-001
Description
Description

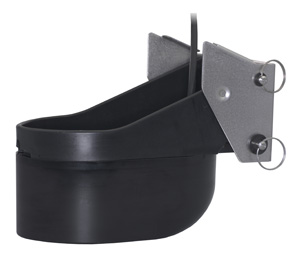

Airmar XSOIC TM260 Transom Mount Transducer. Powerful, Yet Sensitive!
The TM260 takes the legendary performance of the B260 to your vessel’s transom. This top-of-the-line, broadband, transom-mount brings crystal clear imaging to any of today’s fishfinders.
The large, 200 kHz element and the seven-element, 50 kHz array are excellent for bait and game fish separation along with detecting ground fish holding tight to the bottom.
Included rugged mounting bracket is easy-to-install and has a streamlined shape that delivers high-speed performance up to 30 knots (35 MPH).
Features
- Depth and fast-response water-temperature sensor
- 1 kW
- Dual-frequency element:
- 50 kHz with a 19° beamwidth for depth performance to 800 m (2,600')
- 200 kHz with a 6° beamwidth for depth performance to 294 m (1,000')
- Available with a diplexer for single-transmission-line fishfinders and without a diplexer for dual transmission-line fishfinders
- Urethane transom transducer for installation on outboard and I/O powered boats
- Stainless steel kick-up bracket locks in the “up” position and will not damage the transom
Specifications
- Weight: 4 kg (8.9 lb.)
- Recommended Boat Length: 10 m (32') and up
- Hull Deadrise: Up to 28°
- Transom Angle: 3° to 21°
- Acoustic Window: Urethane
- Speed Performance: Up to 35 MPH
