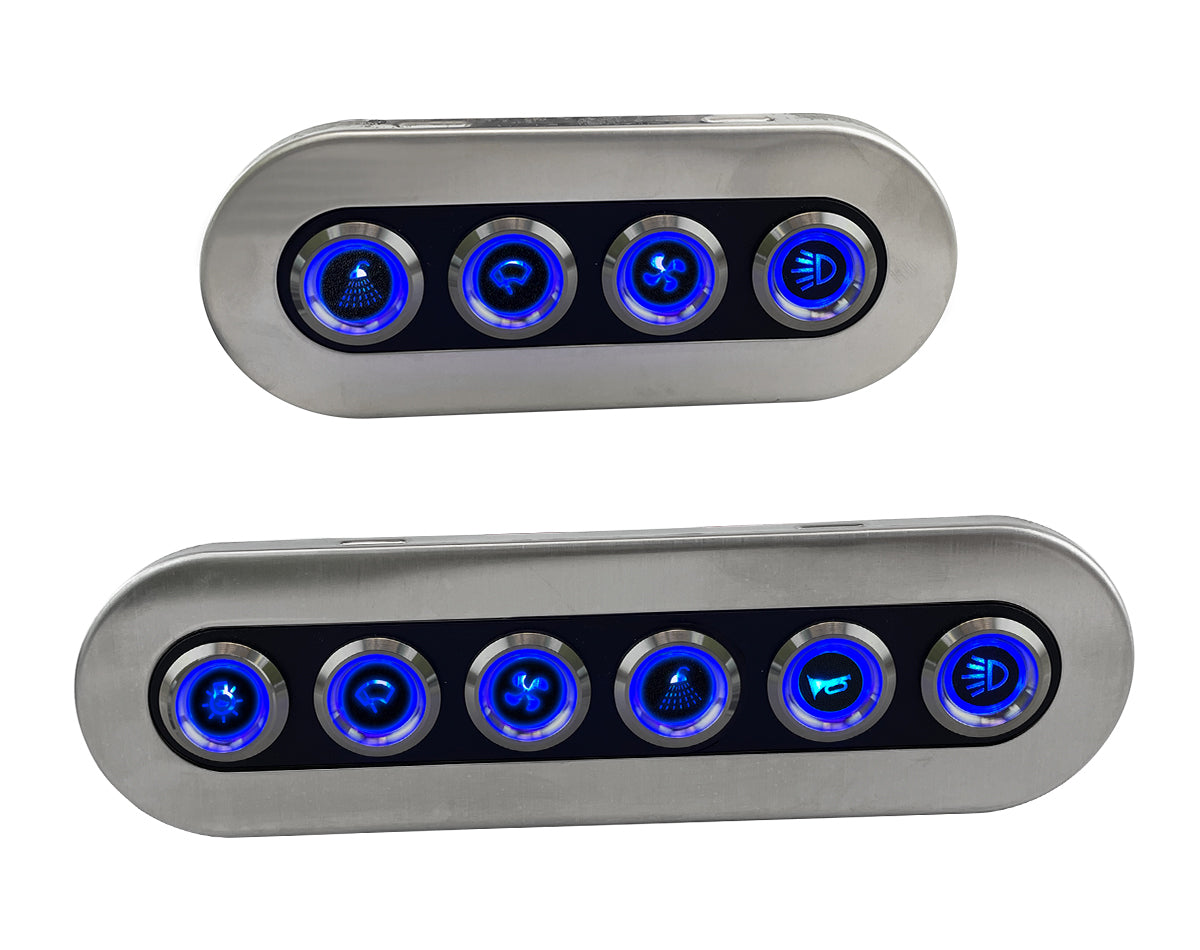

WATER RESISTANT SWITCH PANELS WITH BLUE LED ON/OFF 6 GANG JPW12917

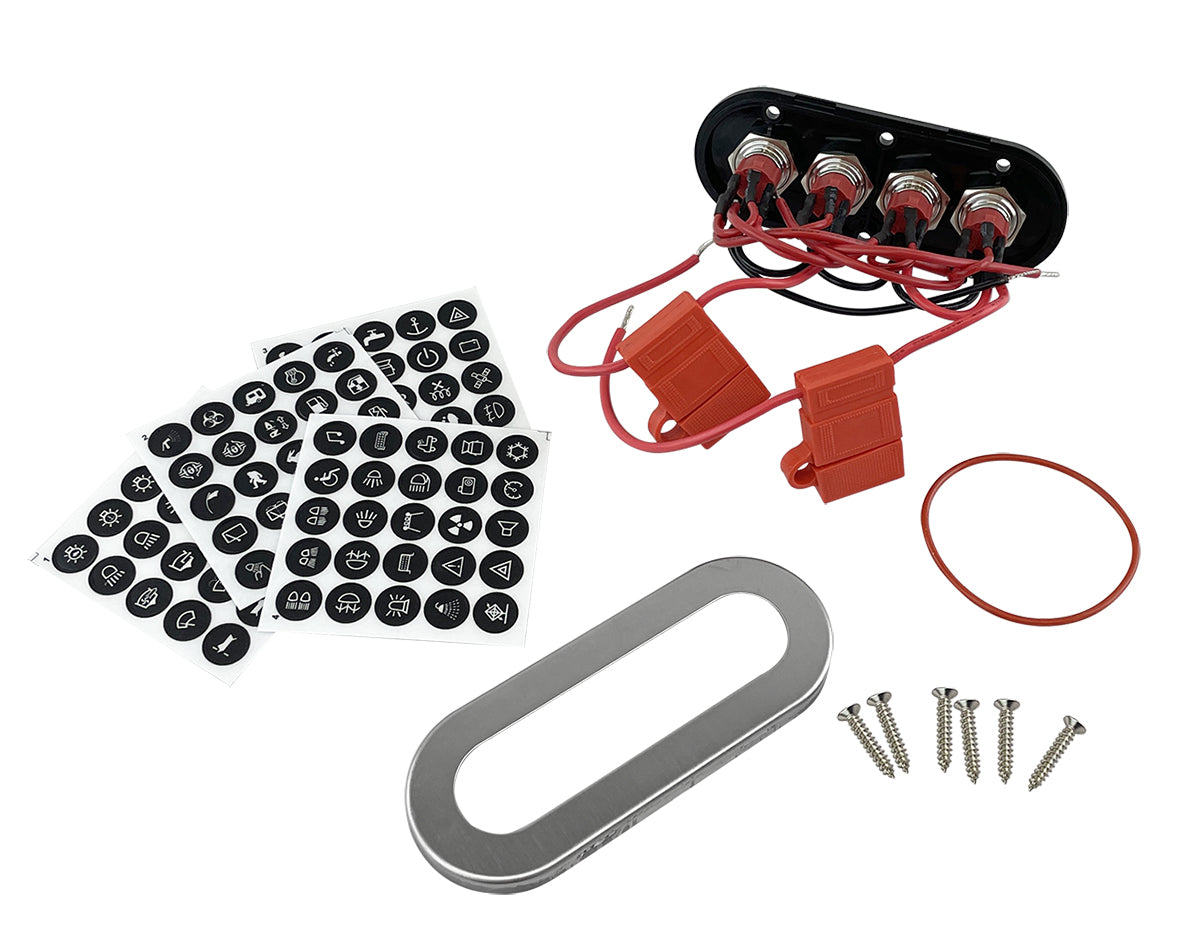

These ABS plastic switch panels feature pre-wired removable blue LED On/Off actuation push button switches. Supplied with o-ring seal and stainless steel face plate to provide a water resistant seal.
The faceplates are made from 316-grade stainless steel and have a brushed finish. The switches are rated at 10A 12-24V standard ON/OFF actuation, with a female non-terminated plug supplied for each switch and fuse holder/s.

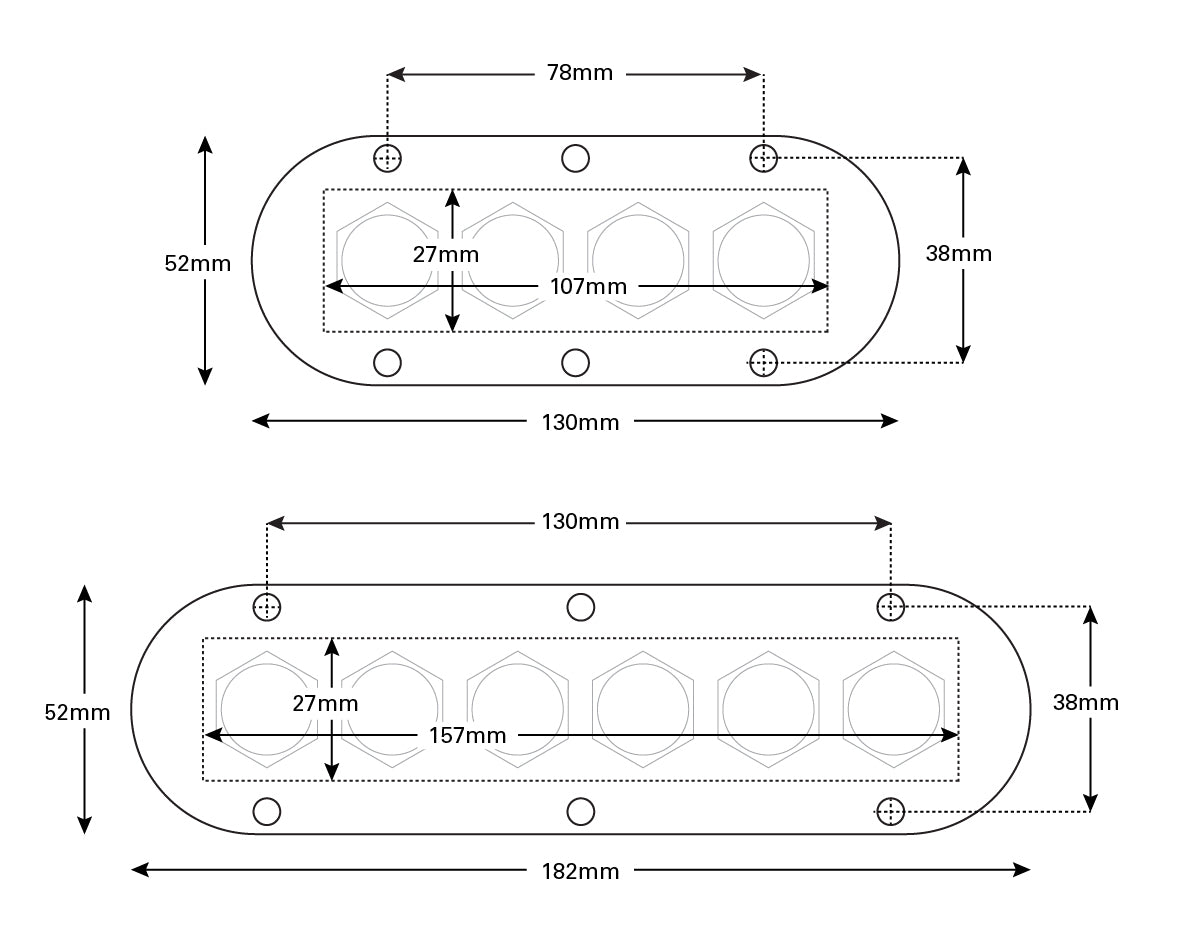

These panels can be mounted horizontally or vertically with the 6 screws supplied, and include 100 various icon labels to clearly identify the switch function.
Features:
- ABS plastic switch panel with stainless steel face plate
- Water resistant with o-ring seal
- ON/OFF switches
- Vertical or horizontal mount
- Silver alloy contacts
- Solid blue indication LED
- Pre-wired ready to fit
- 100 various icon sticky labels
- Includes 6 mounting screws
- Waterproof rating: IP65 (Dust tight and protected from water projected from a nozzle)
- Max current: 20A per 2 branches
- Multivolt: 12-24V
