AIRMAR SS175H 20 DEG CHIRP - MIX AND MATCH SS175C-20-H-MM

Airmar SS175H 20 deg CHIRP - Mix and Match SS175C-20-H

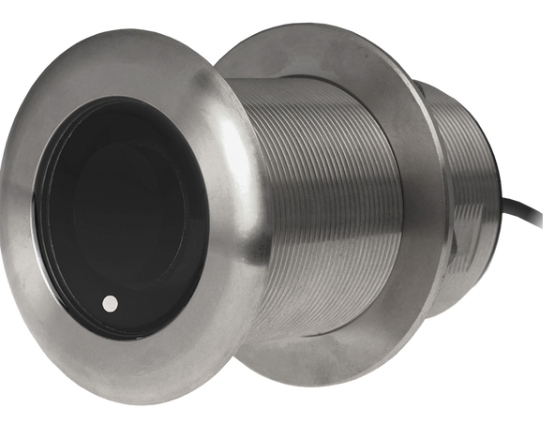

Thru-hull stainless steel low profile model. Same physical size as an SS164, with 1000W power rating. Depth and fast-response water temperature sensor. Available in High (H : 130-210kHz), Medium (M : 85-135kHz) or Low (L : 40-60kHz) frequency bands. Available with zero, 12deg or 20 Deg tilt with bare wire cable. Example : SS175C-12-M is 12deg model in medium frequency band.

1 kW

Airmar’s low-profile, Chirp-ready, transducer models are the perfect addition to smaller boats such as center consoles. The high-frequency band, transmitting between 130 and 210 kHz, has a narrow beamwidth—excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. High frequency also shows amazing target separation on baitfish and schooling gamefish. The SS175H delivers up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and bottom detail.

Tilted Element^™ transducers have the element fixed at a 20°, 12°, or 0° angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull deadrise. It orients the ceramic element horizontally to ensure maximum echo returns to the transducer.

The SS175H is available in three Tilted Element models:

• Fixed 20° tilted version for 16 to 24° hull deadrise angles
• Fixed 12° tilted version for 8 to 15° hull deadrise angles
• Fixed 0° tilted version for 0 to 7° hull deadrise angles

Depth and fast-response water-temperature sensing

• 1 kW of power with a maximum depth of 304 m (1000')
• High frequency: 130 to 210 kHz
• 10° to 6° beamwidth
• 80 kHz of total bandwidth from one transducer
• High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
• Low-profile, thru-hull housing provides good display resolution at speed when installed properly
• Recommended for stepped, planing, or displacement hull
• Stainless steel housing for use in all hull materials
• Also available in a bronze housing (B175H) for use in a fiberglass or wood hull
• Patented Xducer ID^™ technology

Specifications

• Brand: Airmar Technology
• Connector: Garmin 12-Pin
• Display Connector: 12G
• Housing Material: Stainless Steel
• Mounting Style: Tilted Element Thru-Hull
• Sensor Connector: MMC
• Weight: 2.7 kg (6 lb.)
• Common Use: Fishing, Commercial Fishing
• Deadrise Range: 16° to 24°
• Frequency Band: High
• Transducer Functions: Depth, Temperature
• Country of Origin: USA
• High Frequency: 130-210 kHz
• Single or Dual Frequency: CHIRP-Ready Single-Band
• Tilt Angle: 20°
• Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8")
• Max Deadrise Angle: 24°
• Mix and Match Series: 12-Pin Chirp
• Power Rating: 1 kW
• Cable-Length: 10 m (33')
• Hull Material: Compatible w/ all hull materials
• Max Vessel LOA: Up to 11 m (36')
• Tilted Element: Yes
• Retractable housing: No
• Max Deadrise: Up to 24°
• Max Depth: 304 m (1000')
• Acoustic Window: Urethane
• High Frequency Beamwidth: 15°-9°
