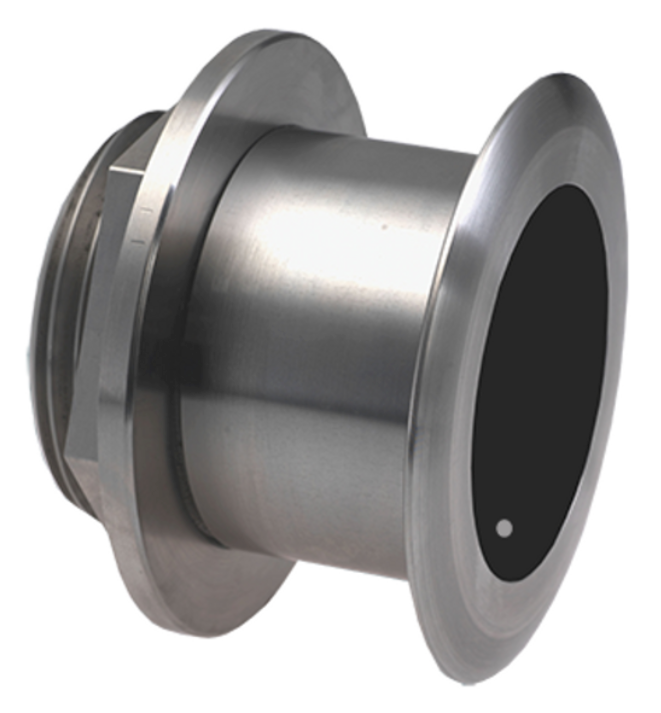

AIRMAR SS175H 12 DEG CHIRP - MIX AND MATCH SS175C-12-H-9N

The SS175 is available in three Tilted Element models:

• Fixed 20° tilted version for 16 to 24° hull deadrise angles
• Fixed 12° tilted version for 8 to 15° hull deadrise angles
• Fixed 0° tilted version for 0 to 7° hull deadrise angles

Features
Depth and fast-response water-temperature sensing
1 kW of power with a maximum depth of 304 m (1000')
High frequency: 130 to 210 kHz
10° to 6° beamwidth
80 kHz of total bandwidth from one transducer
High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
Low-profile, thru-hull housing provides good display resolution at speed when installed properly
Recommended for stepped, planing, or displacement hull
Stainless steel housing for use in all hull materials
Also available in a bronze housing (B175H) for use in a fiberglass or wood hull
Patented Xducer ID™ technology

Specifications

• Brand: Airmar Technology
• Acoustic Window: Urethane
• Cable-Length: 10 m (33')
• Common Use: Fishing, Commercial Fishing
• Country of Origin: USA
• Display Connector: Bare Wire
• Frequency Band: High
• Functions: Depth, Temperature
• High Frequency: 130-210 kHz
• High Frequency Beamwidth: 15°-9°
• Hole Size: Fiberglass or wood hull 95 mm (3-3/4"), Metal hull 105 mm (4-1/8")
• Hull Material: Compatible w/ all hull materials
• Material: Stainless Steel
• Max Deadrise: Up to 24°
• Max Deadrise Angle: 24°
• Max Depth: 304 m (1000')
• Max Vessel LOA: Up to 11 m (36')
• Mounting Style: Tilted Element Thru-Hull
• Power Rating: 1 kW
• Retractable housing: No
• Single or Dual Frequency: CHIRP-Ready Single-Band
• Tilt Angle: 0 12 20 deg
• Tilted Element: Yes
• Weight: 2.7 kg (6 lb.)
