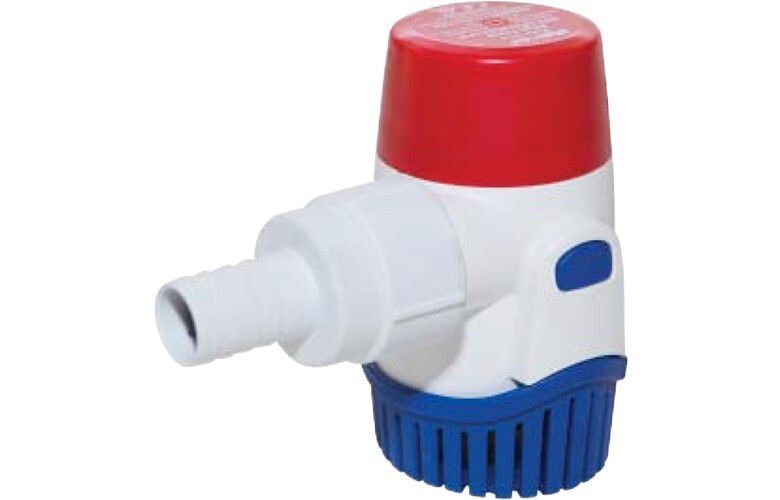

RULE MANUAL BILGE PUMP - 12V 800GPH RWB803 (MPA116)

The Rule 800GPH is a totally submersible bilge pump featuring a water cooled, ignition and TCO protected motor, stainless steel shaft and snap-on strainer base.

This pump is extremely efficient, offering a low current draw and high capacity output in a very compact housing to fit into the smallest available space.

The 800GPH requires a Rule float switch to operate automatically (sold separately - see related products). Using the included check valve will reduce the output flow of the pump.

Product Features:

• Fully submersible pump - 800 US gallons per hour - 50 litres per minute
• Higher flow - optimised impeller to provide greater fl ow at the same amperage as previous model
• High efficiency, low amp draw, ignition protected motor includes true Electromagnetic suppression (EMC)
• 16-gauge tin coated copper electrical wiring with silicone infused water blocking feature - to stop water wicking down inside the wiring
• In-built thermal cut-out (TCO) in the motor provides additional protection for pump & vessel
• Backflow prevention - now includes a removable check valve in the discharge nozzle which reduces the amount of water draining back from the pump discharge hose into the bilge.
• Please note - using the check valve will reduce the rated output flow.
• Threaded discharge port - gives easier installation and maintenance.
• Discharge hose port is included with each pump
• Hidden air vents in the pump prevent air locking in challenging plumbing installations and helps with the check valve operation
• Compact - 112mm Height x 74mm Width x 64mm depth - not including discharge
• 3.4 amp draw @ 12v DC. 1.7 amp draw @ 24v DC
• Threaded hose outlet suits 20mm (3/4") hose. 1 x straight port provided
