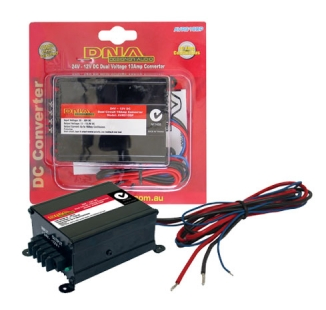

DNA 24V DC TO 12V DC CONVERTER 10A - DUAL OUTPUT AVR010DP

Name: DNA 24V DC TO 12V DC CONVERTER 10A - DUAL OUTPUT AVR010DP
Brand: DNA Audio
SKU: AVR010DP
Price: 78.90 AUD
Availability: InStock

DNA Audio | SKU: AVR010DP

$78.90

Tax included Shipping calculated at checkout.

Delivery and Pickup

Shipping is from $15 per item. Unfortunately, most batteries
and antennas cannot be posted, pick up option only.

Pick up 30 Hunter Street Broome WA 6725

We generally have all items in stock, if out of stock you will hear from one of our team.

Description

Specifications:

Fitted with 2 independent 12VDC outputs.
- Output 1: using the terminals on the side of the case.
- Output 2: using the 3 wires.
Red: 12VDC postive output
Black: negative output
Blue: 24VDC trigger wire for activating the circuit.
Input DC voltage range: DC20~30V DC
Output voltage range: 12V~13.8V
Continuous power: 10 Amps
Peak power: 15 Amps
No load current draw: 20mA
Max. power efficency: >90%
Cooling: Air convection
Input polarity reverse: Diode protection
Output polarity reverse: Circuit protection
Over heating: Circuit protection
Over load: Circuit protection
Output short: Circuit protection
Fuse: 15 Amps
Dimension (LxWxH): 90 x 73 x 45mm
Weight: 330g
Packaging: Sliding blister and card with hang hole
