ULTIMA BILGE SWITCH 20AMP 12/24V 131684
Delivery and Pickup
Delivery and Pickup
Shipping is from $15 per item. Unfortunately, most batteries
and antennas cannot be posted, pick up option only.
Pick up 30 Hunter Street Broome WA 6725
ULTIMA BILGE SWITCH 20AMP 12/24V 131684
Description
Description

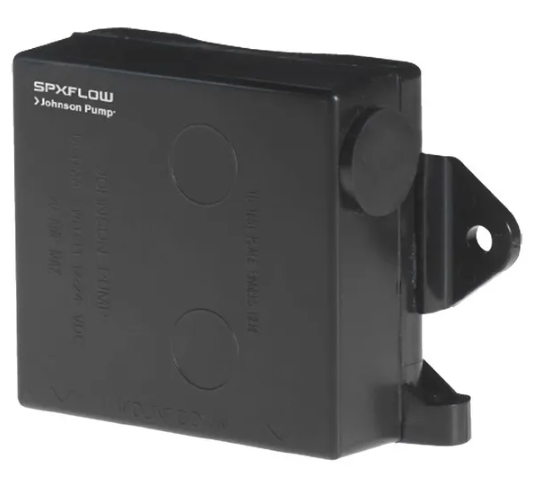

Ultima Float Switch manufactured by Johnson Pump SPX FLOW.
Uses the patented Mirus field effect detector cells producing micro-electrical fields that detect disruptions caused by water and fluids.
Detector cells are totally sealed and are never in contact with the water, will not corrode and are not affected by oil or foreign debris.
No moving parts, totally sealed solid state electronics and field detectors, no mercury and no exposed sensors eliminate corrosion possibilities and makes the Ultima switch environmentally sensitive.
Ultima activates at a 50mm (2") fluid level and deactivates at a 20mm (¾") fluid level.
A 3 second delay prevents false starts.
Ultima switch is rated to handle pumps up to 20 amps at 12 or 24 volts.
N.B. As with all submersible electrics, attention is needed during installation to ensure that wiring connections remain above water level.
Specified output is US gph open flow.
