XSONIC AIRMAR B75M 20 DEG 000-16194-001
Description
Description

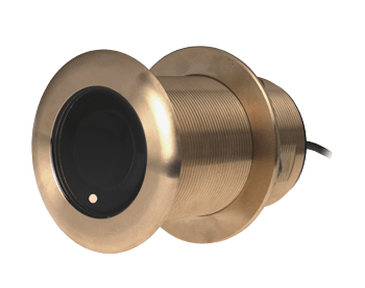

B75H (20°) Airmar’s low profile Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. The B75M transducer delivers up to 50 kHz of total bandwidth in just one installation. It shows amazing bottom detail in shallow and medium depths down to 274 m (900').
B75M transmits across Medium Chirp frequency; 80 to 130 kHz
Tilted Element™ transducers have the element fixed at a 20°, 12° or 0° angle within the housing. The transducer is installed almost flush to the hull. The tilt of the element corrects for the hull deadrise by orienting the beam directly down. This ensures maximum echo returns to the transducer for more accurate depth readings.
- Fixed 20° tilted version for 16° to 24° hull deadrise
Features
- Depth and fast-response water-temperature sensor
- 600 W with a maximum depth performance to 274 m (900')
- Medium frequency: 80 to 130 kHz
- 24° to 16° beamwidth
- Medium frequency delivers better shallow-water performance, bottom detail, and deeper performance than a high-frequency band
- Low-profile, thru-hull housing provides good resolution at speed when installed properly
- Bronze housing for use with stepped, planing or displacement hull
