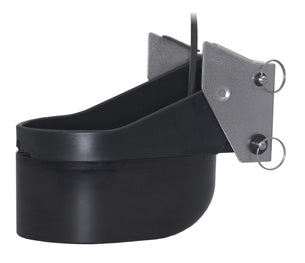

XSONIC TM275LH-W 1KW TRANSOM-MOUNTED LOW/HIGH-WIDE DEPTH 000-13770-001

Navico  |  SKU: 000-13770-001
Regular price $3,049.00
Tax included Shipping calculated at checkout.

Delivery and Pickup

Shipping is from $15 per item. Unfortunately, most batteries and antennas cannot be posted, pick up option only.

Pick up 30 Hunter Street Broome WA 6725

We generally have all items in stock, if out of stock you will hear from one of our team.

Features

  • Depth and fast-response water-temperature sensor
  • 1 kW for great deep-water performance from the low frequency
  • Low frequency: 42 to 65 kHz
  • 25° to 16° beam
  • Maximum depth of 914 m (3,000')
  • High frequency: 150 to 250 kHz
  • 25° constant beamwidth
  • Maximum depth of 914 m (3,000')
  • 123 kHz of total bandwidth from one transducer
  • Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
  • High frequency delivers superior shallow-water performance, bottom detail, and fish-target separation
  • High wide beamwidth yields more coverage for detecting fish in the upper-water column
  • Transom mount, urethane transducer
  • Stainless steel, kick-up bracket locks in the “up” position and will not damage the transom

Specifications

  • Weight: 4 kg (8.9 lb.)
  • Recommended Boat Length: 10 m (32') and up
  • Transom Angle: 3° to 21°
  • Acoustic Window: Urethane
  • Includes: Stainless steel bracket and mounting hardware
  • Transducer Element: Eight internal broadband ceramic assemblies
