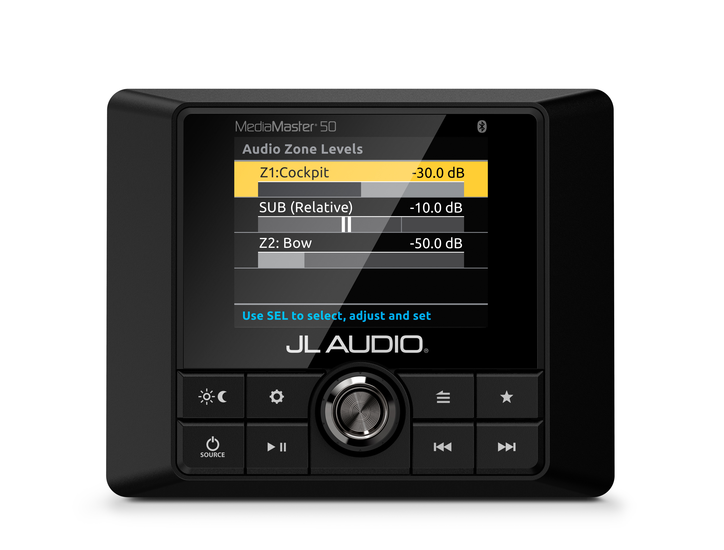

JLA MM50 MARINE SOURCE UNIT 000-14710-001

Engineered for real-world marine duty

• Weatherproof (IP66 rated) design and construction to

withstand the elements

• Easy-to-read, high-brightness, 2.8-inch full-color LCD display with separate

day/night lighting and display themes

• Intuitive interface with large, easy-to-use backlit controls for marine applications
• Independent user settings for display brightness, button brightness and

remote brightness Flexible zone controls give you complete command of your marine listening experience

• 6-channels of audiophile quality, 4V RMS preamp level outputs from two independent main zones, plus a dedicated subwoofer zone
• Configurable Master Volume Control with independent feature/control options:
• Level Controls: Manage volume levels, together or individually, at any time.

A fixed output mode is also available.

• Tone Controls: Bass, Midrange, Treble and Balance, independent or linked with Zone 1
• Rename Zone: Customize the names of each main zone or select from a list
• Max Volume Limit: Set a custom volume level limit for each main zone
• Built-in amplifier generates 100 watts of high-fidelity output (25W RMS x 4) to power two main zones
• Both main zone output types (speaker and preamp level) include a high-pass crossover feature with selectable frequency selection (off/60/80/100/150 Hz)
• Subwoofer zone outputs equipped with a 500 Hz low-pass crossover
• All zones feature a zero-clipping audio circuit design, with self-limiting

tone controls to prevent speaker system damage.

Built for today’s modern media with multiple connectivity options

• Digital AM/FM tuner with RDS (Radio Data System) display info, where available
• Store up to 18 of your favorite AM/FM stations
• Bluetooth® streams top-quality audio from compatible devices
• USB 2.0 direct-digital connection accesses music files on your USB storage device or compatible iPhone®, plus 2.1A USB charging output
• Auxiliary inputs accept audio signals from a wide range of audio sources
• NMEA 2000® Certified - MFD (Multi-Function Display) control functionality using applicable network cables and connectors (sold separately).
• Customizable naming displayed on Bluetooth® devices and MFDs
• Three remote controller options: (each sold separately)
