Description

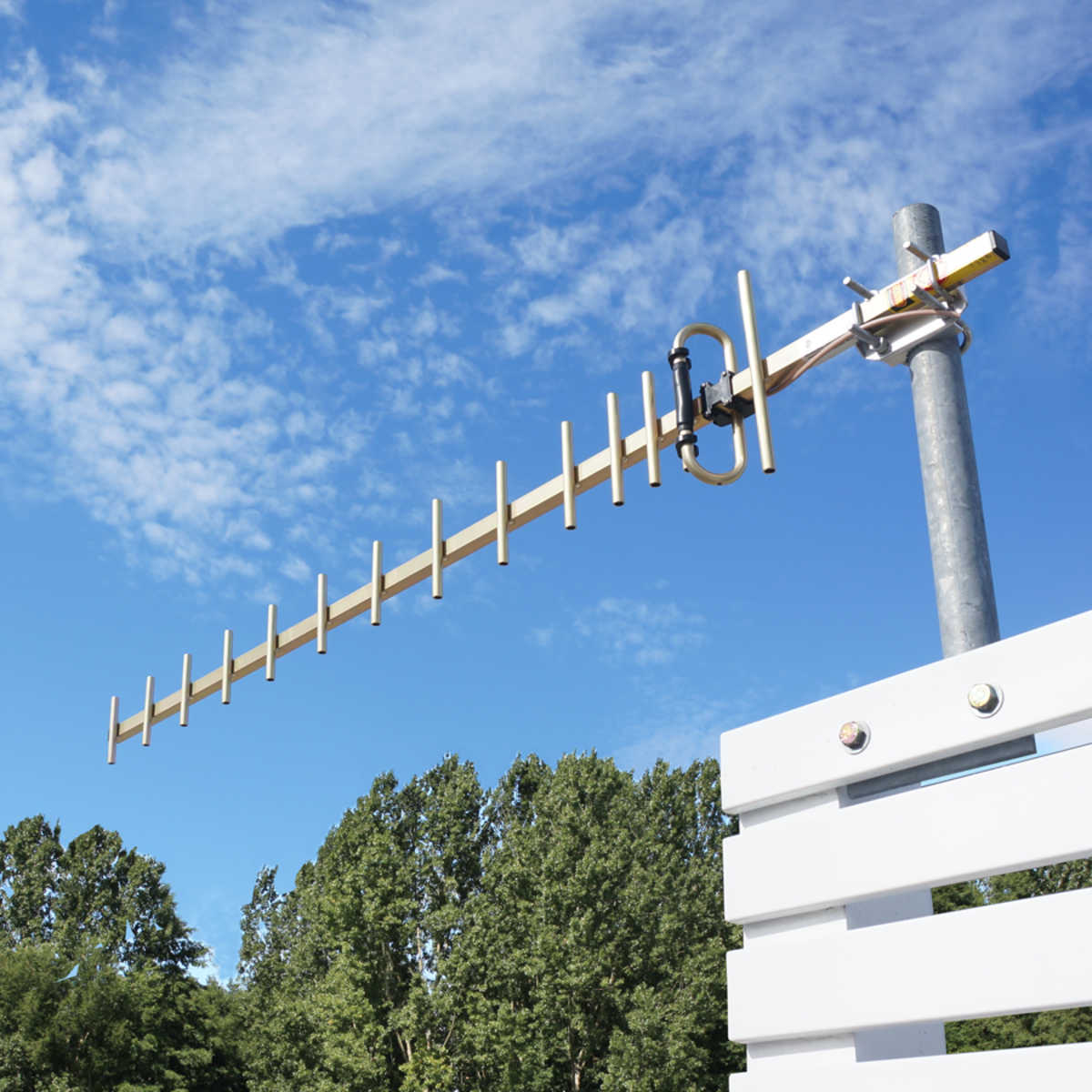

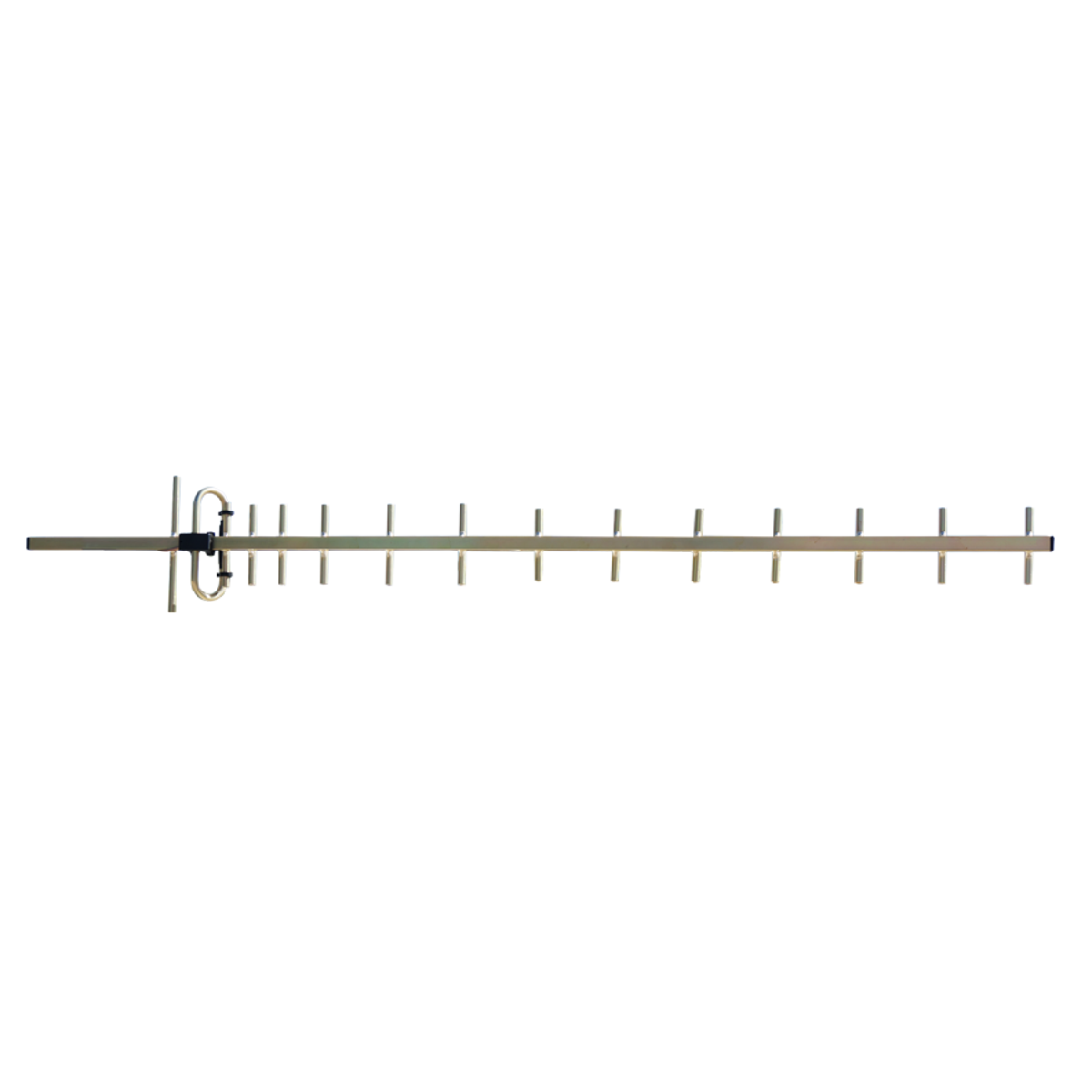

This high gain antenna provides a solution where operation within the 700/800MHz frequency bands. The broad bandwidth also provides network design consistency and benefits to users operating in multiple frequency band segments. The dipole element design delivers excellent performance across the entire bandwidth, with consistently low VSWR and less pattern distortion than dual dipole designs.
The passive elements are mounted to the square boom section and welded on both sides to minimise the potential for corrosion or the generation of passive intermodulation (PIM).
The antenna rests at ground potential to provide excellent lightning protection and reduced precipitation static noise.
Applications include RF control, short or long-haul links, control station combining and telemetry installations requiring a highly directional antenna in point-to-point and point-to-multipoint networks.
- Wide band coverage from 698MHz to 890MHz
- All welded construction for reliability
- Excellent front-to-back ratio
- Alodined conductive plating for performance reliability
- Designed to minimize the generation of PIM
| Weight [kg] | 1 |
| Brand | RFI |
| Length [mm] | 1552 |
| Front Back Ratio dB | 20 |
| Horizontal Beamwidth | 38° |
| Vertical Beamwidth | 35 |
| Tuned Bandwidth | Full |
| Construction | All welded Aluminium |
| Mounting Area | 100mm of 25mm diam. |
| Termination | 500mm of RG142 fitted with N type Female Connector |
| VSWR | <1.8:1 |
| Nominal Gain [dBi] | 13.0 (15.1) |
| Power [W] | 100 |
| Torque @ 160km/h Nm | 73 |
| Wind Gust Rating KMH | 184 |
| Frequency | 698-890 |
| Frequency Range [MHz] | 698 - 890 |
| Connector | N(F) |
| Antenna Type | Directional Yagis |
| Antenna Application | Base Station Antenna |
| Frequency Band | 700/800/900 MHz |
